BL090 Series

90mm pitch, flanged and recessed type louvre panels

Enquire Below!

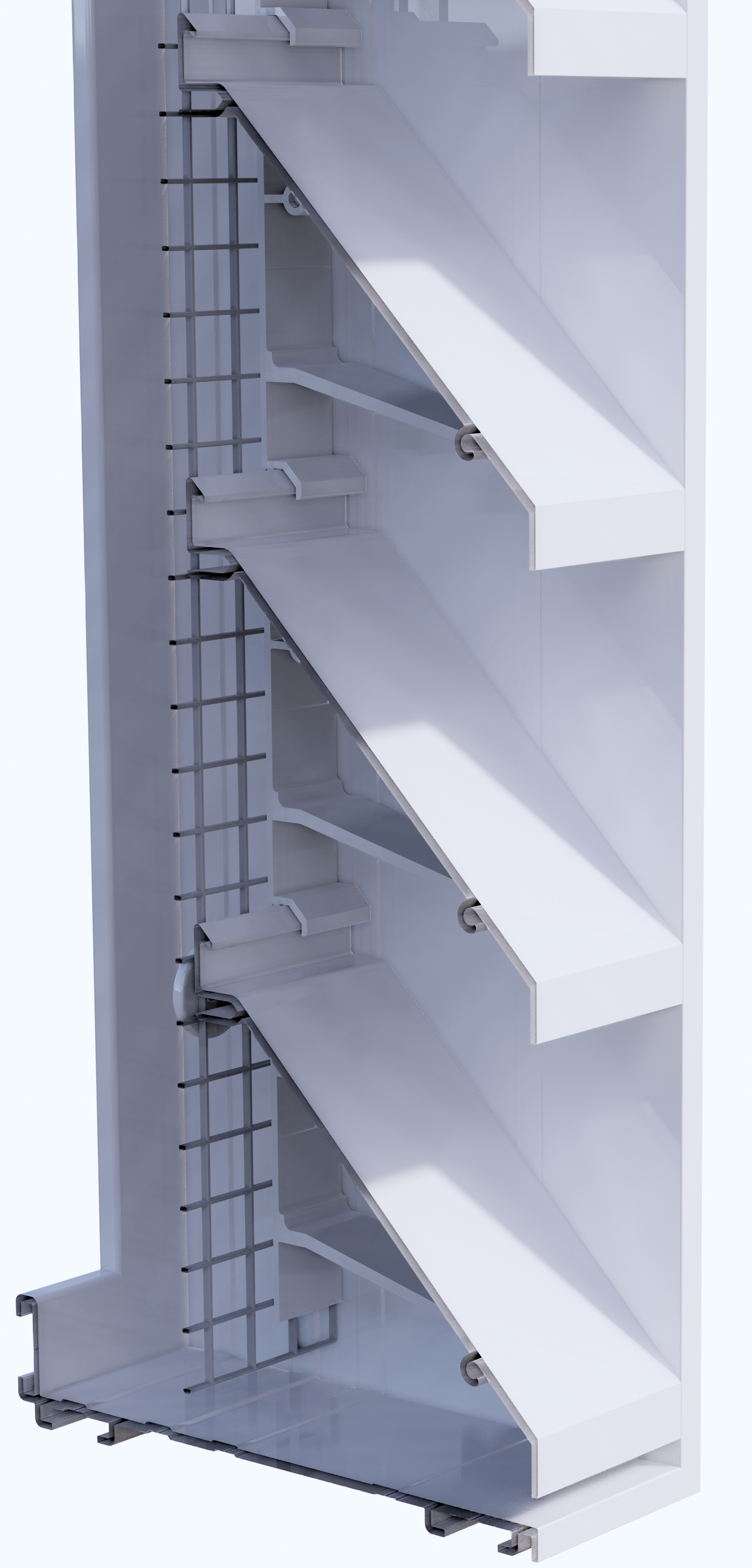

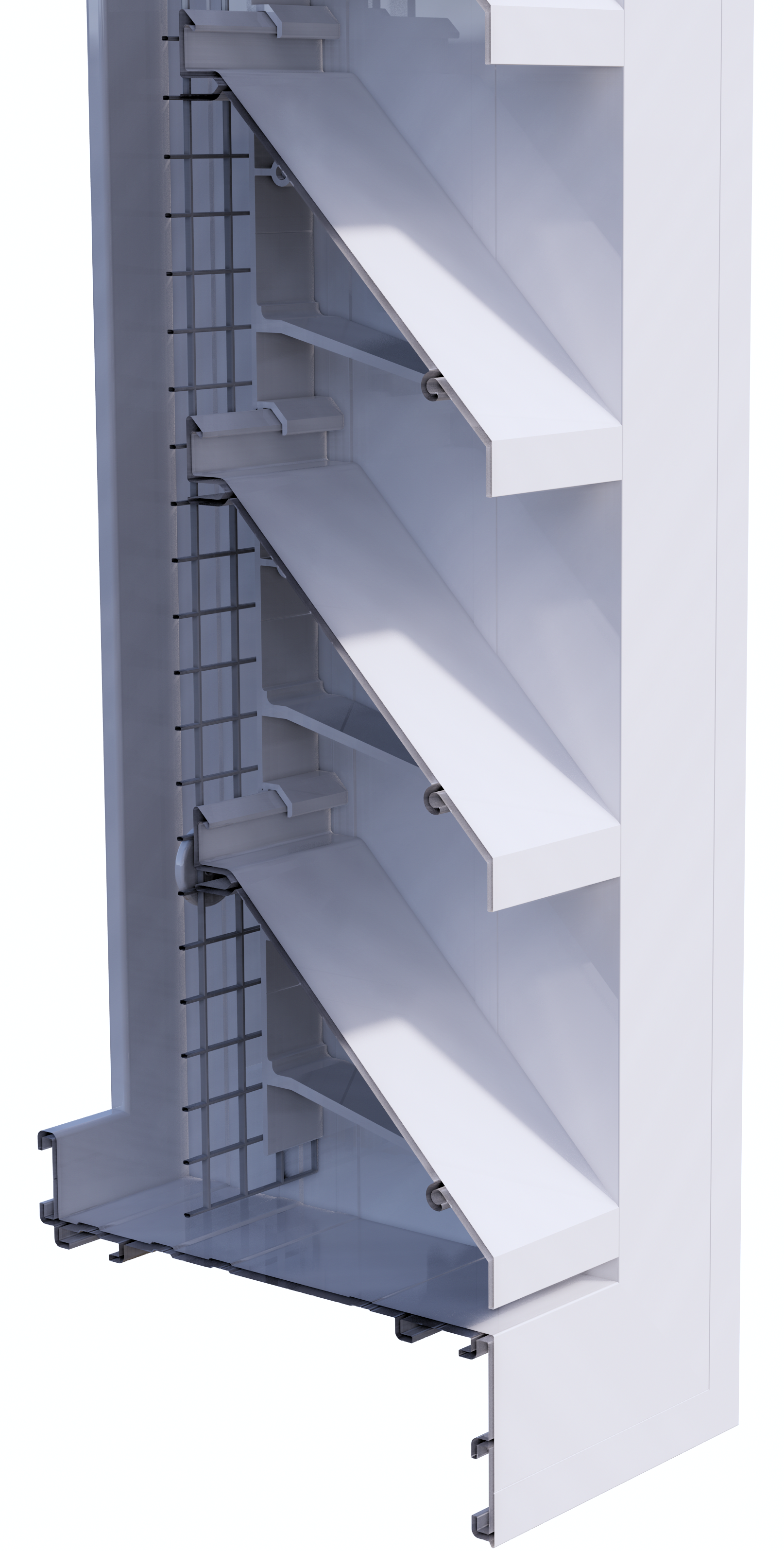

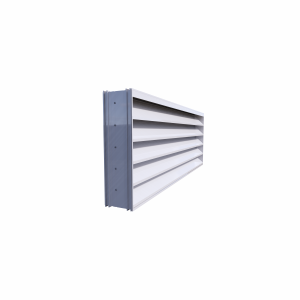

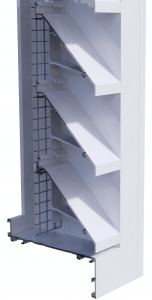

The BL090 Series extruded aluminium louvres compromise louvre blades inclined at 45° and mounted at 90mm centres within 99mm or 143mm deep frames.  Galvanised steel bird screen supplied as standard.  Frames can be flanged for surface mounting or knife edge/recessed type to give frameless appearance.  Louvre sizes made to suit customer requirements

Recommended maximum. size for a single unit: upto 2000 x 2000.  Larger sizes accommodated in multi-panel systems.

Nominal free area: 60% with bird mesh fitted

Maximum BSRIA weather test rating 2022 (simulated rainfall of 75mm/hr, wind speed of 13m/sec):


BL090-F143F        86.21%   (class B)  standard birdguard fitted

99.68%  (class A)  standard insect mesh fitted

BL090 Series

BL090 Series louvres product brochure
