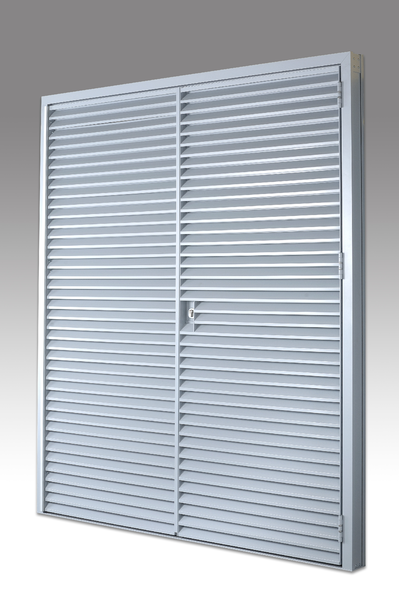

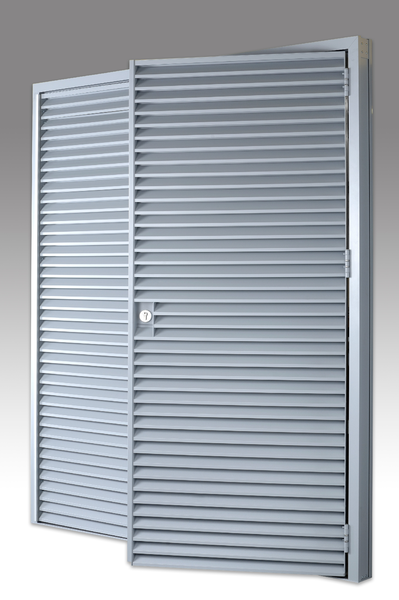

BL-LD Fully Louvred Doors

Aluminium fully louvred doors available to match the BL50 Series and BL75 Series louvre systems

Enquire Below!

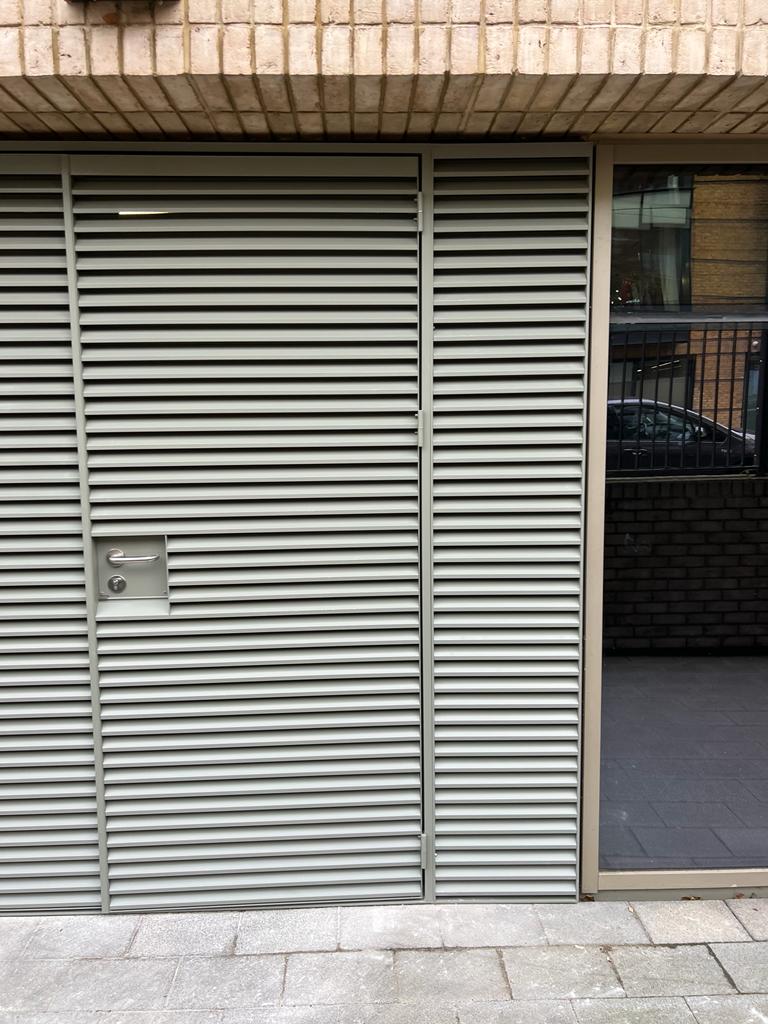

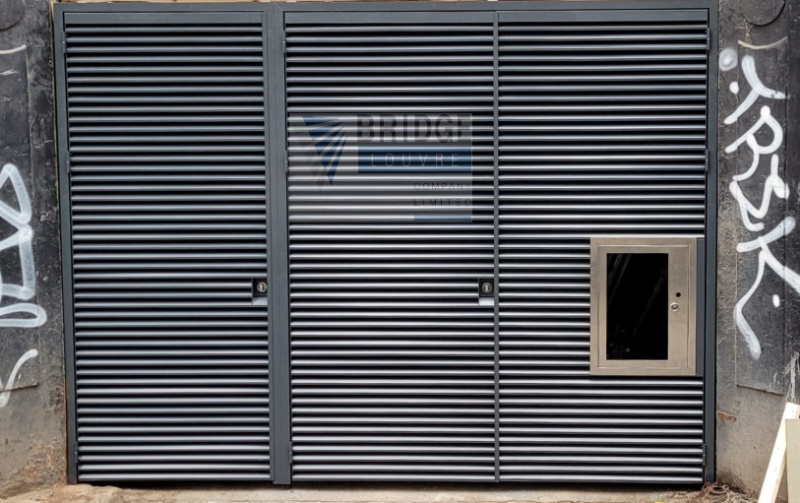

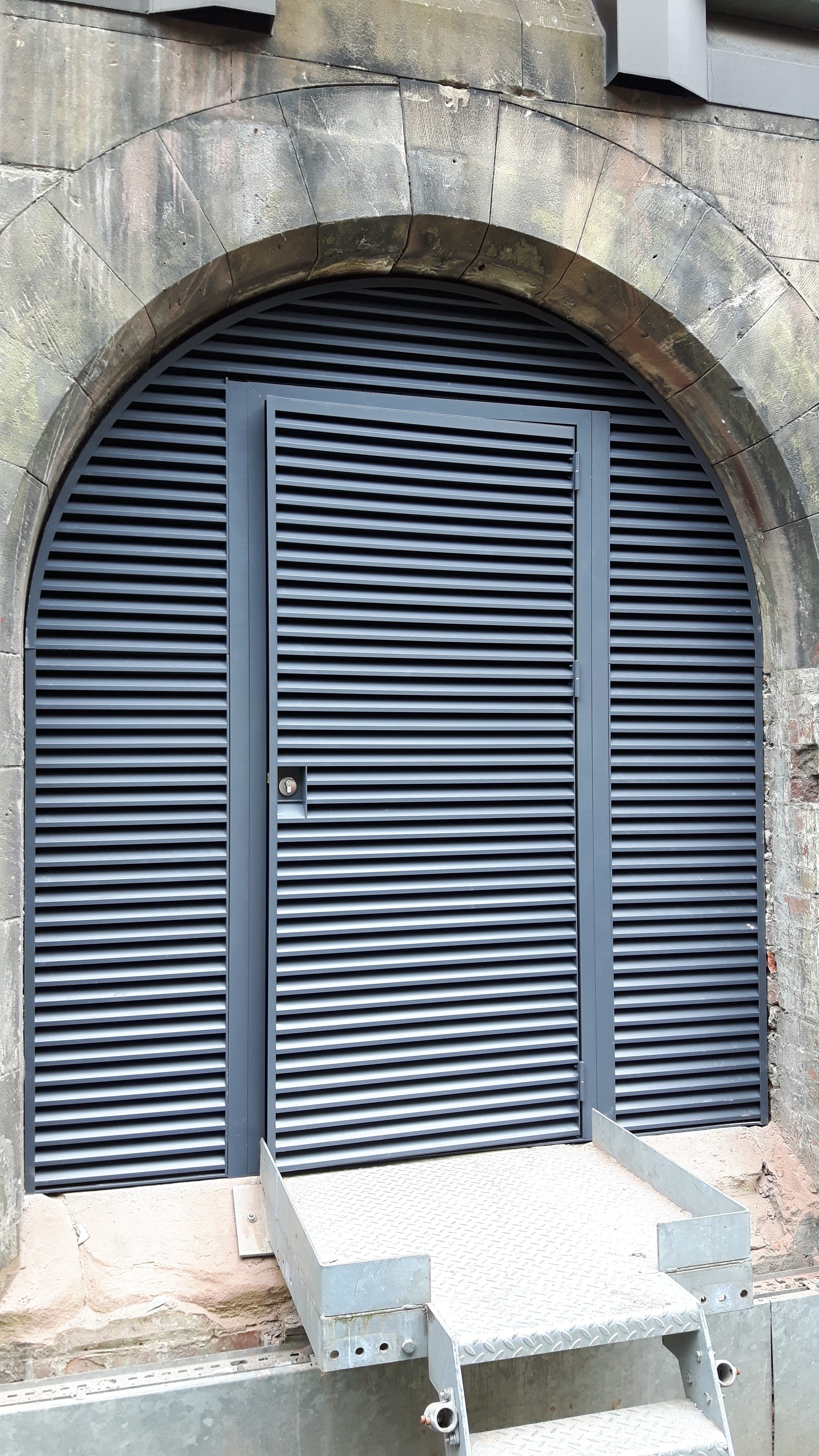

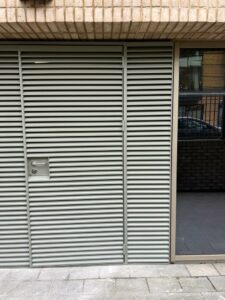

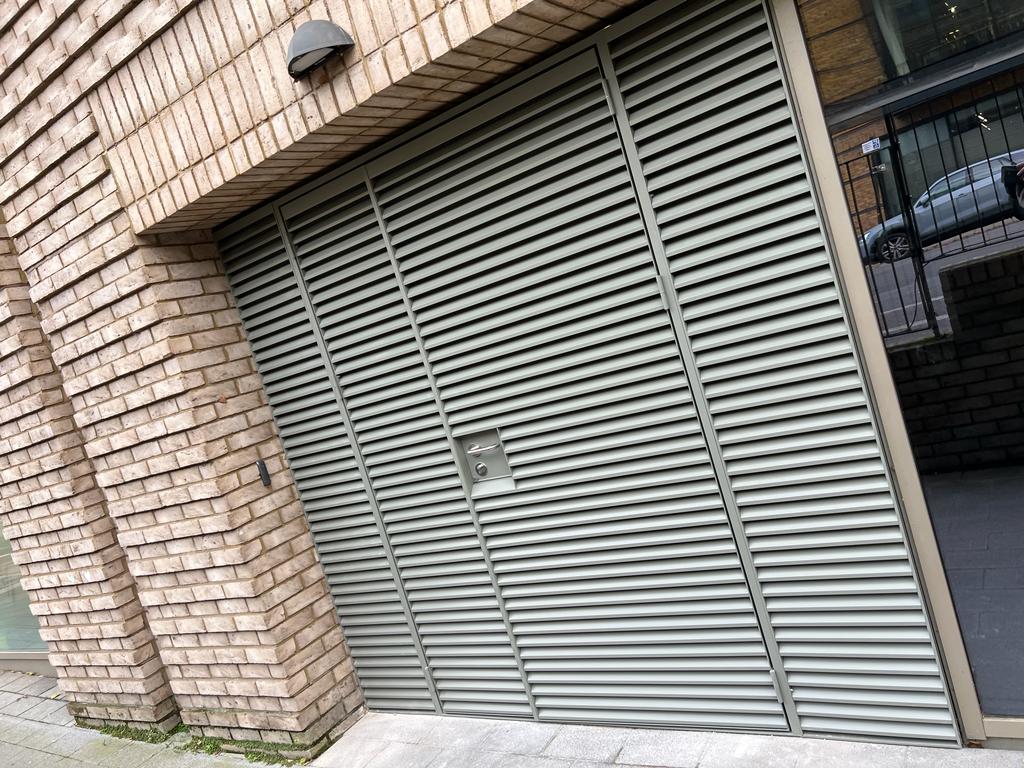

The BL-LD fully louvred aluminium doorsets are ideal for bin stores, plantrooms,etc.

All made to measure with a typical 2-3 week lead time, the doors are available with either a 50mm or 75mm pitch as standard.

The BL-LD doors are available as inward or outward opening.  Please specify handing when placing an order.

Doors come complete with our standard mortice deadlock.



Options:

Emergency escape hardware (with or without external access device)

• Sash lock and lever handles

• Insect Screens.

• Blanking Panels, single skin or insulated

• Vermin Guard

• Flush bolts

• Chain bolts (recommended on double doors over 2200mm high)

• Door stays (recommended on all doors unless closer fitted)

• Door closers (with ‘hold-open’ option)

• Customers hardware/ironmongery (subject to compatibility)

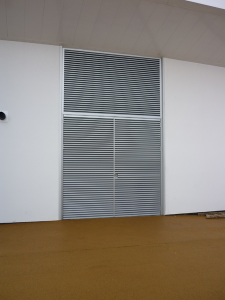

• Removable transom and overpanels.

• Alternative louvre blade configurations including double bank

• Inward opening

Finishes

• Unfinished aluminium (mill finish)

• Architectural grade Polyester Powder coatings to any standard RAL or BS 4800 range colours.

• Anodised

• Special finishes on request

BL50LD Aluminium Louvred Door Specification

Aluminium extrusions type 6063-T6 to  BS1474 having a minimum thickness of 1.6mm.

Standard outer box frame dimensions: 50mm x 100mm with hinge rebate.

Door leaf depth: 74mm

Hinges: 3 no. 102 x 76mm lift off butt hinges in satin stainless steel, to BS EN1935

Louvre Blade pitch: 50mm

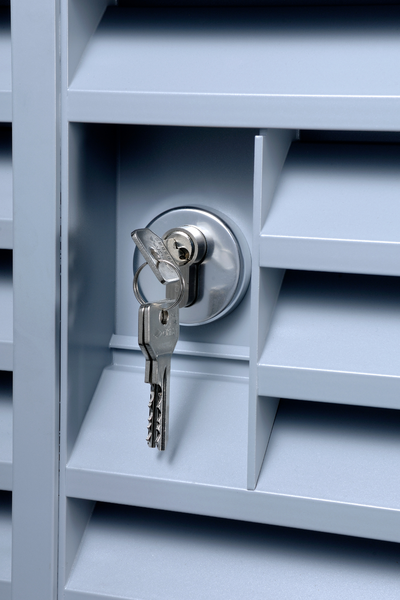

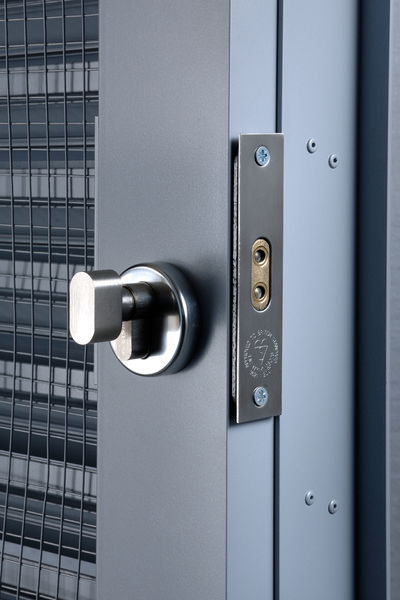

Lock case :63mm euro profile mortice deadlock to EN12209:2003

Cylinder: Euro cylinder, keyed external, thumbturn internal.

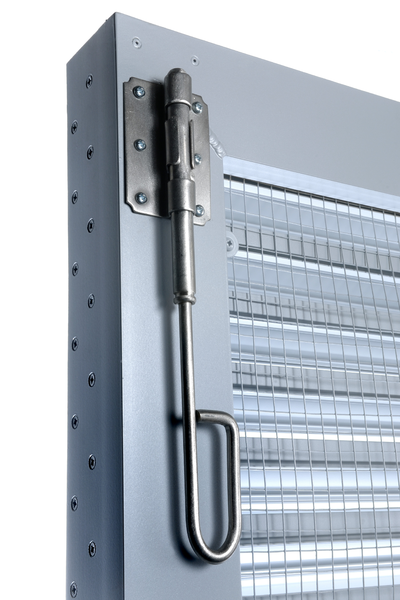

Shoot bolts (double doors only):  heavy duty brushed stainless steel 14mm diameter



Bird guard mesh: Galvanised after manufacture to BS443.  Size 12.5mm x 12.5mm x 1mm.  Fitted as standard.



Standard hardware correct at time of  (may change without notice)



 BL75LD Aluminium Louvred Door Specification

Standard outer box frame dimensions: 50mm x 150mm

Door leaf depth:110mm

Hinges: 3 no. 102 x 76mm lift off butt hinges in satin stainless steel, to BS EN1935

Louvre Blade pitch: 75mm

Lock case :64mm euro profile mortice deadlock to EN12209

Cylinder: Euro cylinder, keyed external, thumbturn internal.

Shoot bolts (double doors only):  heavy duty brushed stainless steel 14mm diameter



Bird guard mesh: Galvanised after manufacture to BS443.  Size 12.5mm x 12.5mm x 1mm.  Fitted as standard.

See BL75 and BL50 Series downloads for additional product information



BL-LD Fully Louvred Doors

Download data sheet for louvred doors
